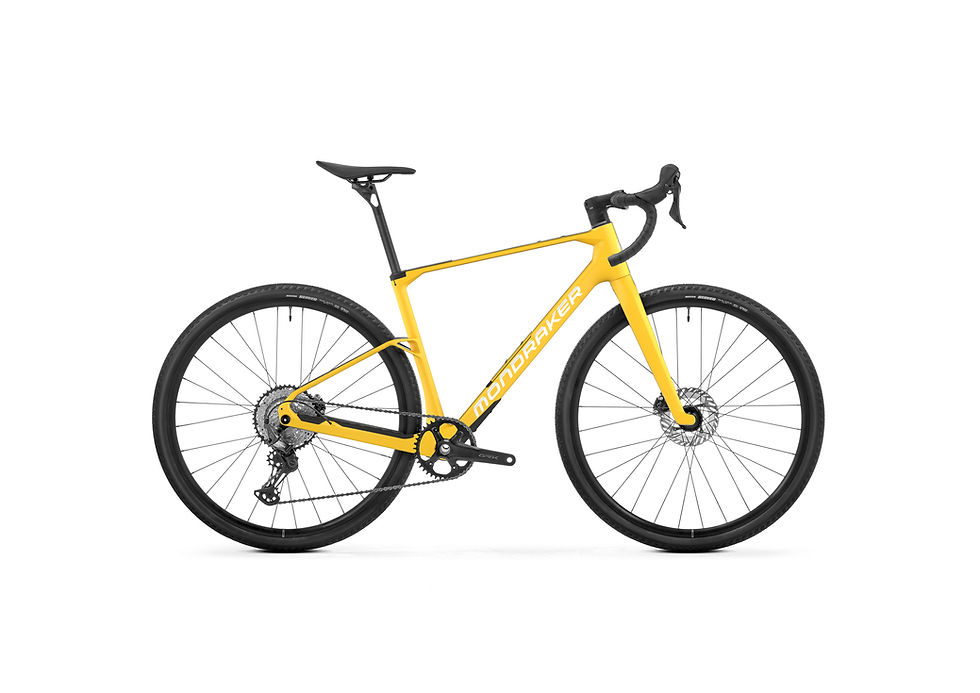

MONDRAKER ARID GRX DI2 SHARQ

Telaio
Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
Taglie
S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
Forcella
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Sterzo
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Attacco manubrio
Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Manubrio
Onoff S9 GR Carbon 16º bar flare. Width sizes S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm
Manopole
Fizik Terra Solocush Tacky Bartape
Reggisella
Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
Sella
Fizik Vento Argo X5 140mm
Freno anteriore
Shimano GRX RX825, RX820 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
Freno posteriore
Shimano GRX RX825, RX820 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
Leve Freno
Shimano GRX RX825, contact point adjustment, tooled reach adjust, aluminium lever.
Cerchi
Fulcrum Sharq GR, Carbon 2-Wave Rim, 47-52mm height, 30mm internal width, Hooked Rim
Raggi
Fulcrum A3RO 3mm
Asse mozzo anteriore
Fulcrum, 12x100mm, Steel Cup & Cone Bearings, Centerlock
Asse mozzo posteriore
Fulcrum, 12x142mm, Steel Cup & Cone Bearings, Centerlock, MS Freehub
Pneumatico anteriore
Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
Pneumatico posteriore
Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
Guarnitura
Shimano GRX RX820, S size: 170mm M size: 170mm ML size: 170mm L size: 172,5mm XL size: 175mm, CL 49,7
Corona
Shimano 40T, alloy
Movimento centrale
Token T47 BSA sealed bearings, 85,5mm
Catena
Shimano XT CN-M8100, 12s, Quick-Link
Cambio - Posteriore
Shimano GRX RX827 DI2, 12s
Comandi cambio
Shimano GRX RX825 DI2 dual lever
Cassetta Pignoni
Shimano XT CS-M8200 ,10-51T, Hyperglide+, 12s
Forcellino
Sram UDH
